Colossus candle screen changer with backwashing

Colossus is a high-area polymer screen changer that changes candle filter elements. It combines continuous candle replacement with backwashing for fine melt filtration and demanding contamination loads, including an optional pulsed solvent-backwashing configuration.

Colossus side profile
1,385–7,000 cm²Active-area configurations
6,500 psiDocumented maximum pressure
1 µmConfigured filtration down to
450 °CHigh-temperature configuration

Colossus

Model specifications

Table units
Colossus · Model specifications
ModelActive filter areaEstimated throughputHeatingMax. pressureWeight
Colossus C1,385–2,770 cm²214.68–429.35 in²2,500–11,100 kg/h5,500–24,500 lb/h28.8 kW448 bar6,500 psi2,400 kg5,291 lb
Colossus D3,460–7,000 cm²536.3–1,085 in²6,200–28,000 kg/h13,700–61,700 lb/h46.9 kW448 bar6,500 psi4,250 kg9,370 lb

Dimensions

Colossus · Dimensions
ModelABCDEFGHIJ
Colossus C924 mm36.38 in548 mm21.57 in376 mm14.8 in1,025 mm40.35 in361 mm14.21 in587 mm23.11 in333 mm13.11 in227 mm8.94 in373 mm14.69 in581 mm22.87 in
Colossus D1,536 mm60.47 in911 mm35.87 in625 mm24.61 in1,703 mm67.05 in600 mm23.62 in961 mm37.83 in554 mm21.81 in391 mm15.39 in393 mm15.47 in601 mm23.66 in
Filter dimensions and measurement references
Dimensions

Polymer candle filter screen changer: candle changing and backwashing

Colossus is a screen changer built around candle filter elements. Candles can be replaced without interrupting the process. Backwashing cleans loaded elements and supports longer intervals between replacements; pulsed solvent backwashing is available as a configured option. As a self-cleaning screen changer with backwashing, Colossus suits plastic recycling lines where heavy contamination would quickly load a conventional screen pack, and it can be specified as a pelletizing screen changer ahead of the pelletizing die on recycling and compounding lines.

Model selection

Where this system fits

Select by the process duty, then size the filter.
Selection factorApplication guidance
Primary nicheLarge filtration area for fine media, heavy contamination or processes constrained by filter loading.
Filter architectureModular candle elements, rather than selecting the system by rotary screen diameter alone.
TemperatureUp to 300 °C standard; up to 450 °C with the high-temperature configuration.
Element serviceBrochure describes element changeout without process interruption and pulsed solvent backwash. Confirm the isolation sequence and solvent compatibility for the specified resin.

System architecture

Built for difficult contaminant loads.

Colossus extends Patt’s pressure-control approach to modular candle media and very large filtration areas.

AREA

Modular candles

Specially mounted elements provide high active area and straightforward service access.

Explore
PULSE

Solvent backwash

Optional pulsed backwash is designed to reduce material loss and extend element service life.

Explore
LIVE

Continuous changeout

Element replacement is designed to be fast and possible without interrupting the process.

Explore

Control and integration

Large-area filtration with process visibility.

Networked logging makes process stability, pressure behaviour and filter consumption visible to operators and plant systems.

  • Adaptive differential-pressure control
  • Pulsed solvent-backwash option
  • Explosion-protected configurations by project
  • Corrosion-resistant body-material option
Colossus side profile
Colossus C/D platform

Filtration media

Sintered cartridge filtration

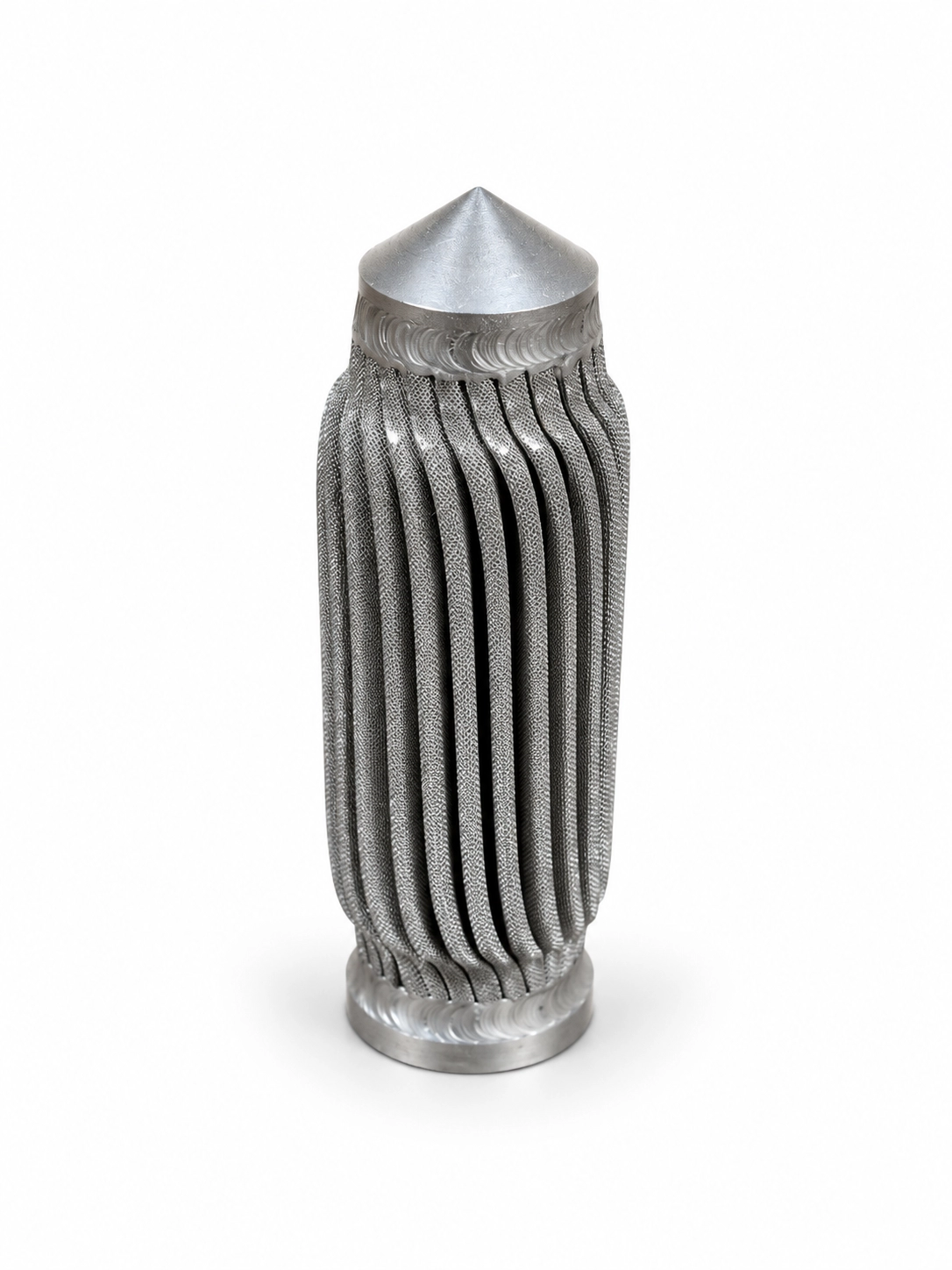

A cartridge format accommodates a large developed filtering surface in a compact element. The supplied sintered cartridge shown here illustrates the media construction used for this type of filtration. Element geometry, mesh and connections are selected with the system configuration.

Sintered cartridge filter
Sintered cartridge filter
